SMD3225无源贴片晶振27.12MHz规格参数(含测试数据)

晶诺威SMD3225无源贴片晶振27.12MHz规格参数说明如下:

  • 标称频率Nominal Frequency: 27.12MHz
  • 封装尺寸 Holder Type: SMD 3.2*2.5
  • 振动模式 Vibration Mode: Fundamental
  • 调整频差 Frequency Tolerance(+25℃): ±10ppm
  • 温度频差 Frequency Drift(-40 ~ +85℃ ): ±30ppm
  • 工作温度范围 Operating Temperature Range:-40 ~ +85℃
  • 等效电阻 Equivalent Resistance: ≤40Ω
  • 静电容 Shunt Capacitance(C0): 2pF Maximum
  • 负载电容 Load Capacitance: 7pF
  • 激励功率 Drive Level: 10 μw Typical

无源晶振SMD3225 27.12MHz外形尺寸图Marking and Dimensions

SMD3225无源贴片晶振27.12MHz规格参数(含测试数据)

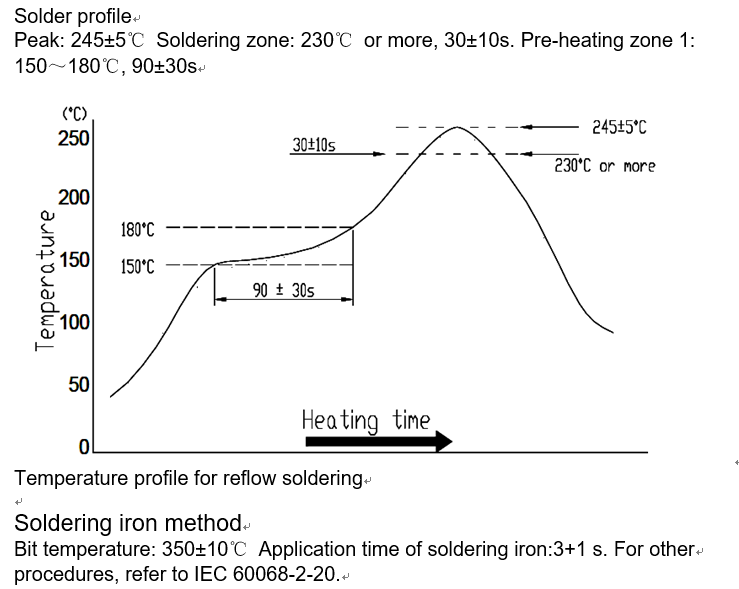

无源晶振SMD3225 27.12MHz回流焊作业建议Recommended Reflow soldering condition (SMD)

SMD3225无源贴片晶振27.12MHz规格参数(含测试数据)

附测试数据Test Data:无源晶振SMD3225 27.12MHz 7pF ±10ppm

SMD3225无源贴片晶振27.12MHz规格参数(含测试数据)
