±2PPM TCXO3225 32MHz 1XTW32000PDB规格及使用说明如下:
- Device Name名称: TCXO3225
- Nominal Frequency标称频率: 32.000MHz
- Size尺寸:3.2mm*2.5mm
- Model Name型号: DSB321SDN
- Spec. No.规格号 : 1XTW32000PDB
- Frequency Stability频率稳定度: ±2PPM
- Supply Voltage额定输入电压范围: 3.3V
- Operating Temperature Range 工作温度范围: -40~+85℃
- Current Consumption功耗: 2.0 mA max.
- Start Up Time启动时间: 2ms
- SSB Phase Noise相噪: -130 dBc/Hz
TCXO3225 32MHz 1XTW32000PDB Electrical Characteristics 电气参数特性
TCXO3225 32MHz 1XTW32000PDB Outline, Pin Connections外形尺寸及脚位连接说明
TCXO3225 32MHz 1XTW32000PDB Measurement Circuit 测试电路

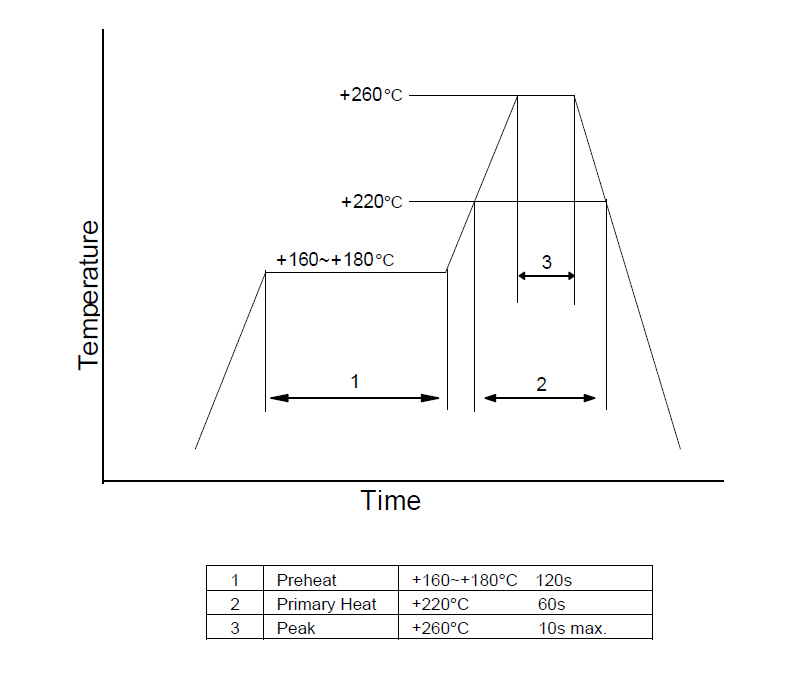

TCXO3225 32MHz 1XTW32000PDB Reflow Profile 回流焊作业说明
