车规级晶振NX3225GD-8.000MHz-STD-CRA-3规格



车规级晶振NX3225GD-8.000MHz-STD-CRA-3规格

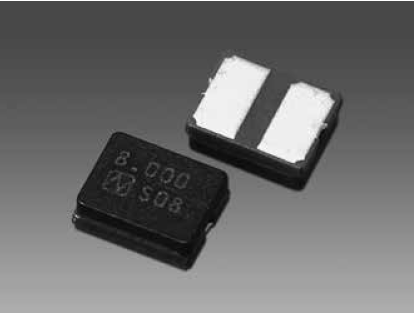

车规级晶振NX3225GD-8.000MHz-STD-CRA-3规格及使用说明如下:

  • Brand品牌: NDK
  • Type类别:车规级晶振
  • Nominal frequency (Fnom)标称频率: 8.000MHz
  • Size尺寸:3.2mm*2.5mm
  • Pin No. : 2 pins 两脚
  • Overtone order 振荡模式: Fundamental基频
  • Frequency tolerance调整频差 : ±50PPM max. (at +25°C)
  • Frequency versus temperature characteristics温度频差: ±150PPM max. (at -40~+150°C) The reference temperature shall be +25°C
  • Equivalent resistance等效阻抗 : 500Ω max
  • Frequency aging 年老化率: ±10PPM max./ year (at +25°C)
  • Maximum drive Level 最大激励功率: 200μW max.
  • Insulation resistance 绝缘阻抗: Terminal to terminal insulation resistance also terminal to cover insulation resistance must be 500MΩ (min) when DC100V ±15V is applied.
  • Load capacitance (CL) 负载电容: 8pF
  • Excitation level : 10Μw

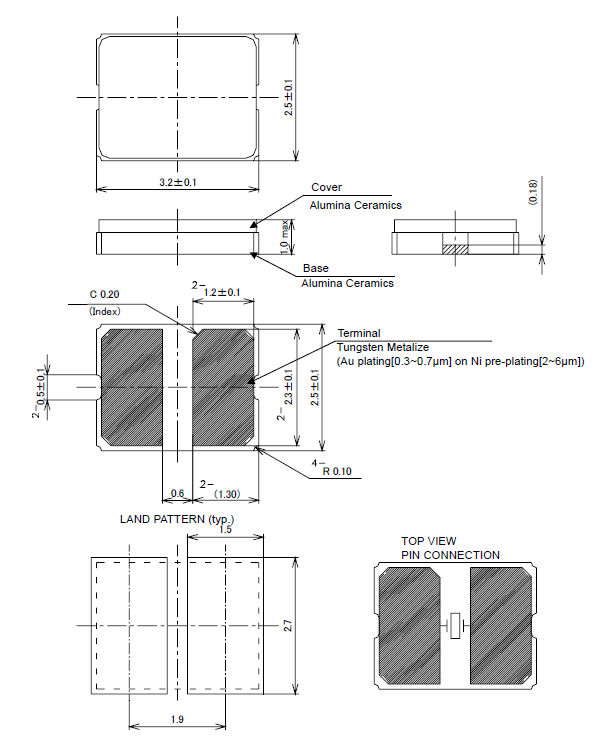

NX3225GD-8.000MHz-STD-CRA-3 Outline and pin connection外型尺寸及引脚说明

车规级晶振NX3225GD-8.000MHz-STD-CRA-3规格

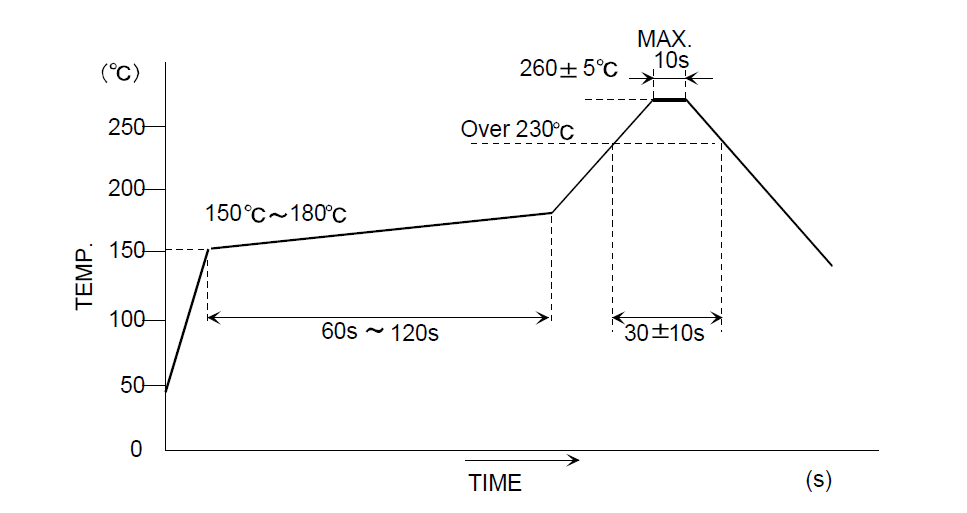

NX3225GD-8.000MHz-STD-CRA-3 Recommendation reflow condition回流焊作业建议

车规级晶振NX3225GD-8.000MHz-STD-CRA-3规格
