频率精度±0.5PPM TCXO2016温补晶振32MHz 1XXD32000MHA

频率精度±0.5PPM TCXO2016温补晶振32MHz 1XXD32000MHA

  • Device Name名称: 温补晶振TCXO2016
  • Nominal Frequency标称频率: 32.000 MHz
  • Size尺寸: 2.0mm*1.6mm
  • Model Name型号: DSB211SDN
  • Spec. No.料号 : 1XXD32000MHA
  • Frequency Stability vs Temperature频率精度: ±0.5PPM
  • Supply Voltage额定输入电压范围: 1.8V~3.3V
  • Current Consumption功耗: 1.5 mA max.
  • Start Up Time启动时间: 2ms
  • Output Wave form输出波形:Clipped sine wave削峰正弦波

TCXO2016温补晶振32MHz 1XXD32000MHA Absolute Maximum Rating 绝对最大值

频率精度±0.5PPM TCXO2016温补晶振32MHz 1XXD32000MHA

TCXO2016温补晶振32MHz 1XXD32000MHA Recommended Operating Conditions建议工作条件

频率精度±0.5PPM TCXO2016温补晶振32MHz 1XXD32000MHA

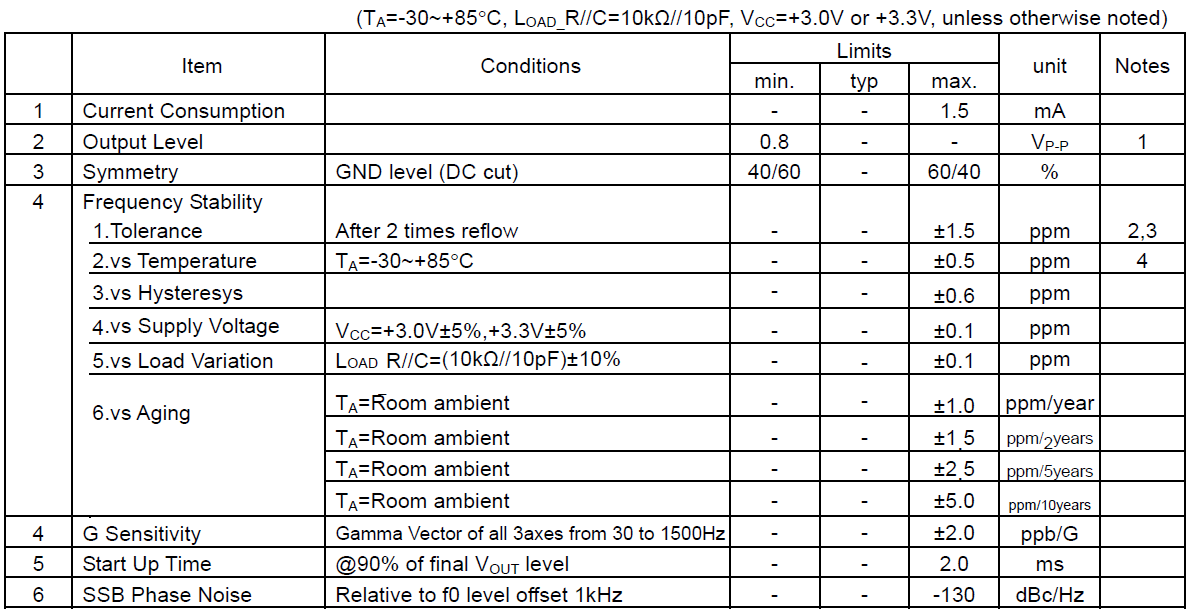

TCXO2016温补晶振32MHz 1XXD32000MHA Electrical Characteristics 电气参数特性

频率精度±0.5PPM TCXO2016温补晶振32MHz 1XXD32000MHA

Notes:
1. Clipped sine wave (DC-coupled)
2. Ta=+25℃
3. Please leave after reflow in 2 hours or more at room ambient.

TCXO2016温补晶振32MHz 1XXD32000MHA Outline, Pin Connections外形尺寸及脚位连接说明

频率精度±0.5PPM TCXO2016温补晶振32MHz 1XXD32000MHA

TCXO2016温补晶振32MHz 1XXD32000MHA Measurement Circuit 测试电路

频率精度±0.5PPM TCXO2016温补晶振32MHz 1XXD32000MHA
