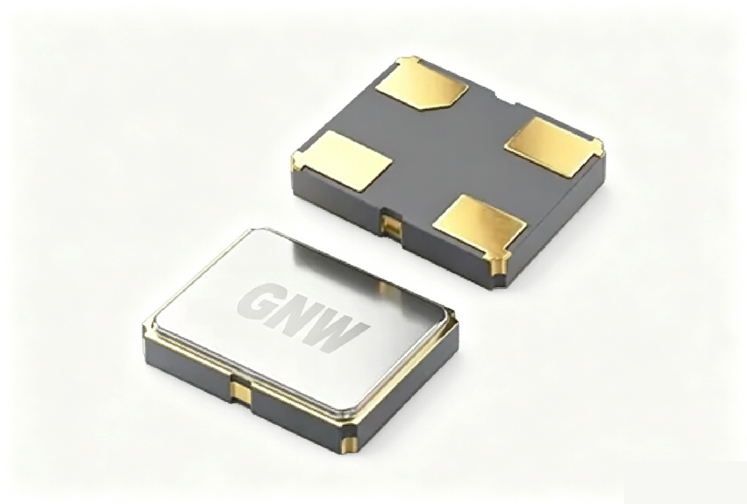

TCXO3225温补晶振32MHz 1XTW32000MHB规格参数

TCXO3225温补晶振32MHz 1XTW32000MHB规格参数介绍如下:

Main Electrical Characteristics主要电气参数

  • Device Name名称: TCXO3225
  • Nominal Frequency标称频率: 32.000MHz
  • Size尺寸: 3.2mm*2.5mm
  • Model Name型号: DSB321SDN
  • Spec. No.规格号: 1XTW32000MHB
  • Frequency Stability频率稳定度: ±0.5PPM
  • Supply Voltage额定输入电压范围: 3.3V
  • Output Wave form输出波形:Clipped sine wave 削峰正弦波
  • Current Consumption功耗: 2.0mA max.
  • Start Up Time启动时间: 2ms
  • SSB Phase Noise相噪: -130dBc/Hz

Absolute Maximum Rating最大绝对值

TCXO3225温补晶振32MHz 1XTW32000MHB规格参数

Electrical Characteristics 电气参数特性

TCXO3225温补晶振32MHz 1XTW32000MHB规格参数

Electrical Operating Conditions电气工作条件

TCXO3225温补晶振32MHz 1XTW32000MHB规格参数

Notes:
1. Clipped sine wave (DC-coupled)
2. Ta=+25℃
3. Please leave after reflow in 2 hours or more at room ambient.

Outline, Pin Connections外形尺寸及脚位电路连接说明

TCXO3225温补晶振32MHz 1XTW32000MHB规格参数

Measurement Circuit 测试电路

TCXO3225温补晶振32MHz 1XTW32000MHB规格参数

Reflow Profile 回流焊作业说明

TCXO3225温补晶振32MHz 1XTW32000MHB规格参数
