KDS 1C208000BC0R SMD3225晶振8MHz规格参数说明

KDS 1C208000BC0R SMD3225晶振8MHz规格参数说明如下:

测试条件1、温度: +25±3°C ;2、相对湿度: 60% max.

  • 类型Type: DSX321G
  • 料号SPEC No. : 1C208000BC0R
  • 标称频率Nominal Frequency: 8.000MHz
  • 封装尺寸 Holder Type: SMD 3.2*2.5
  • 振动模式 Vibration Mode: Fundamental基频
  • 调整频差 Frequency Tolerance(at +25±3℃): ±20ppm
  • 温度频差 Frequency Drift(-40 ~ +85℃ ): ±30ppm max. (ref. to +25°C)
  • 工作温度范围 Operating Temperature Range:-40 ~ +85℃
  • 等效电阻 Equivalent Resistance: ≤40Ω
  • 绝缘阻抗 Insulation Resistance:500MΩ min. / DC 100 ± 15V
  • 静电容 Shunt Capacitance(C0): 2pF max.
  • 负载电容 Load Capacitance: 12pF
  • 激励功率 Drive Level: 10±2 μwl

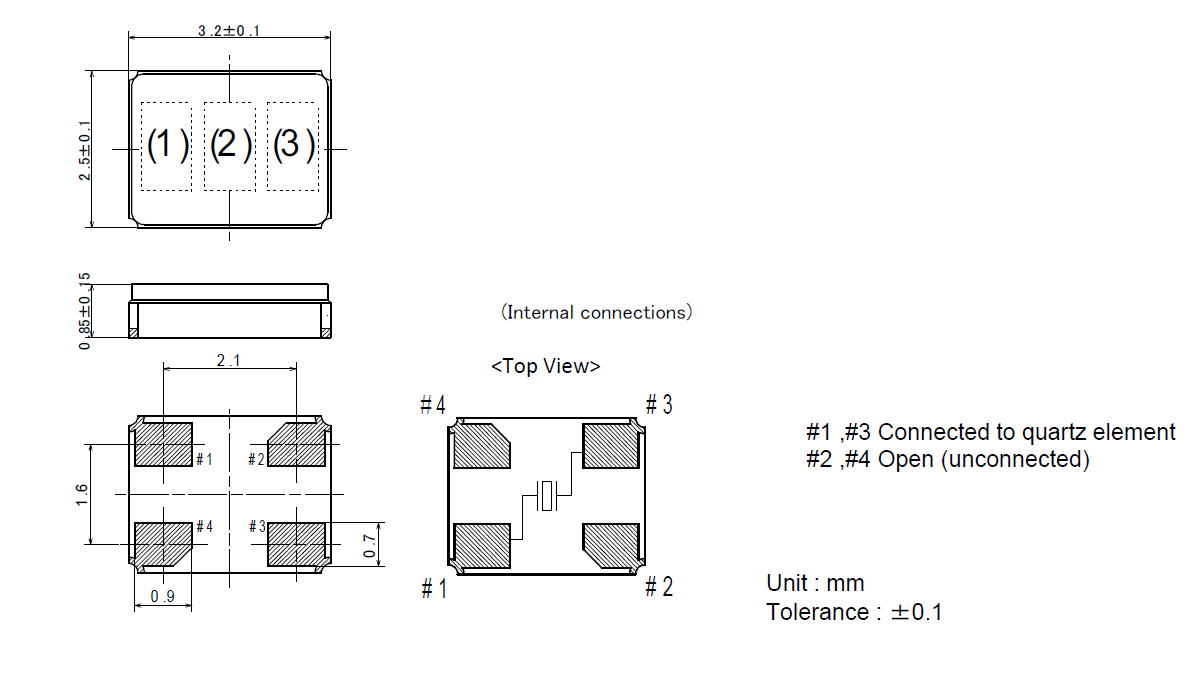

KDS 1C208000BC0R SMD3225晶振8MHz尺寸及焊盘说明Dimensions and Pads

KDS 1C208000BC0R SMD3225晶振8MHz规格参数说明

KDS 1C208000BC0R SMD3225晶振8MHz回流焊作业建议Recommended Reflow Soldering Conditions.
