(TEST DATA FOR TCXO-DIP14-10MHZ-5V)
关于CMOS输出10MHz高精度石英温补振荡器TCXO DIP14规格及参数,晶诺威科技介绍如下:

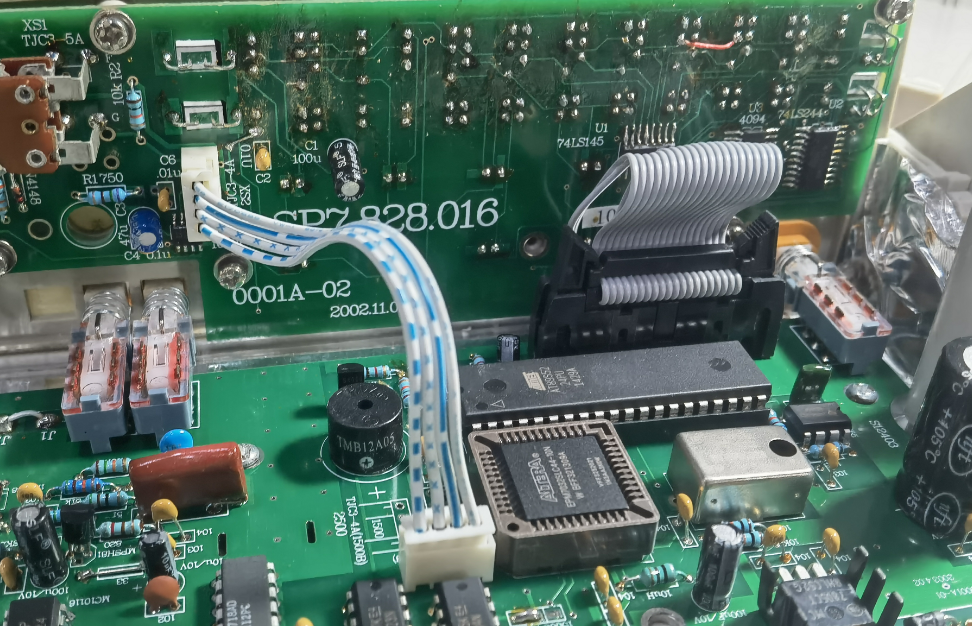

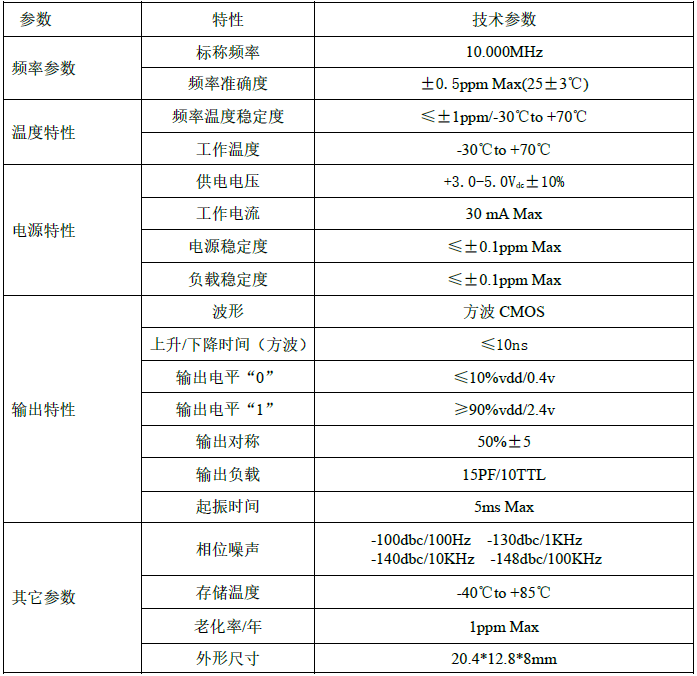

MAIN ELECTRICAL CHARACTERITICS主要电气参数
- 标称频率Nominal Frequency: 10.000MHz
- 频率精度Frequency Tolerance:±0.5ppm Max.(25±3℃)
- 温度频差Frequency Stability:±1ppm /-30~70℃
- 工作温度Operating Temperature Range:-30~+70 ℃
- 供电电压Supply Voltage:3.0~5.0V
- 工作电流Current Consumption:30mA Max.
- 输出波形Output Type:方波
- 上升/下降时间Rise/Fall Time(方波):≤10ns
- 输出负载Output Load:15PF/10TTL
- 起振时间Start Up Time:5ms Max.
- 外形尺寸Dimensions: 20.40*12.8*8mm
- 相位噪声SSB Phase Noise:-100dbc/100Hz;-130dbc/1KHz;-140dbc/10KHz;-148dbc/100KHz
SPECIFICATIONS IN DETAILS规格参数详情

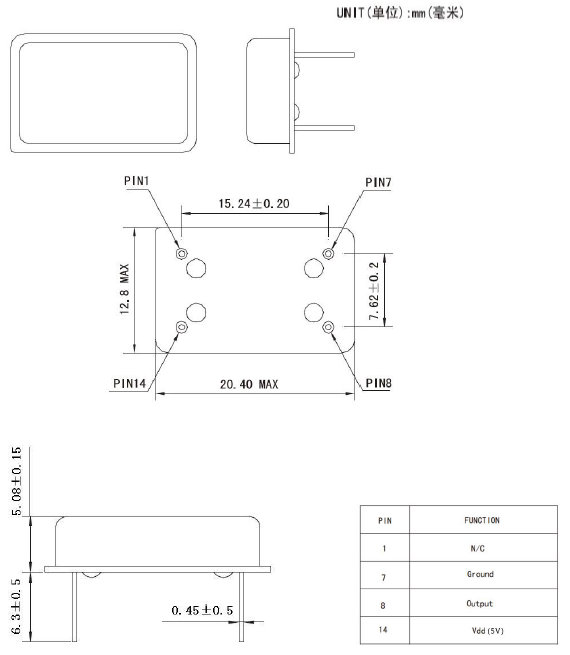

DIMENSIONS AND PIN FUNCTIONS 尺寸及引脚说明
