晶诺威产射频13.560MHz M49SMD(MINI 49SMD)特点及优势

  • External dimensions外部尺寸: 6.1x 4.0x 2.0mm
  • Nominal Frequency标称频率:13.560MHz
  • Surface mount type crystal units表面贴装晶体谐振器(无源晶振)
  • High frequency pullability 具备良好的频率拉伸性
  • Excellent Frequency stability and reliability  优良的频率稳定性及可靠性
  • Low equivalent series resistance低阻抗低功耗特性,协助产品实现低功耗

Applications应用领域:

RF射频类产品

Electrical Specifications电气参数

  • Item/Type类别:M49SMD
  • Vibration Mode振荡模式 :AT Fundamental AT切基频
  • Load Capacitance负载电容:12pF、20pF或定制
  • Frequency Tolerance (at 25℃)调整频差 :±10ppm、± 20ppm或定制
  • Frequency Versus Temperature Characteristics温度频差:±20ppm或定制
  • Operating Temperature Range工作温度范围: -20~+70℃、40~+85℃
  • Storage Temperature储存温度:-40~+85℃
  • Shunt Capacitance静电容:5pF max.
  • Level Of Drive激励功率:0.01-1000 uW
  • Insulation Resistance绝缘阻抗:≥500MΩ ∥DC100V± 10V
  • Frequency Aging (at 25℃)频率老化率(首年):±3ppm/year max.

晶诺威科技产MINI 49SMD等效阻抗参数:

Equivalent Series Resistance(ESR) 等效阻抗(Fundamental基频)

6.000~7.999MHz 120Ω max.

8.000~11.999MHz 80Ω max

12.000-16.000MHz 60Ω max

16.000~19.000MHz 50Ω max

20.000~50.000MHz 40Ω max

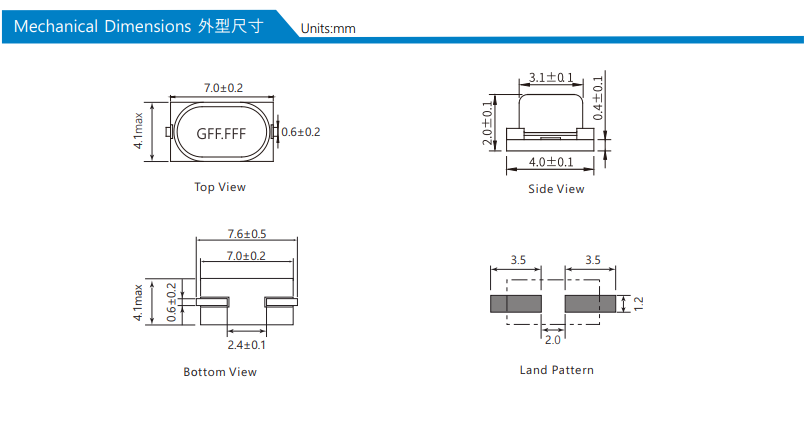

MINI 49SMD Dimensions尺寸
